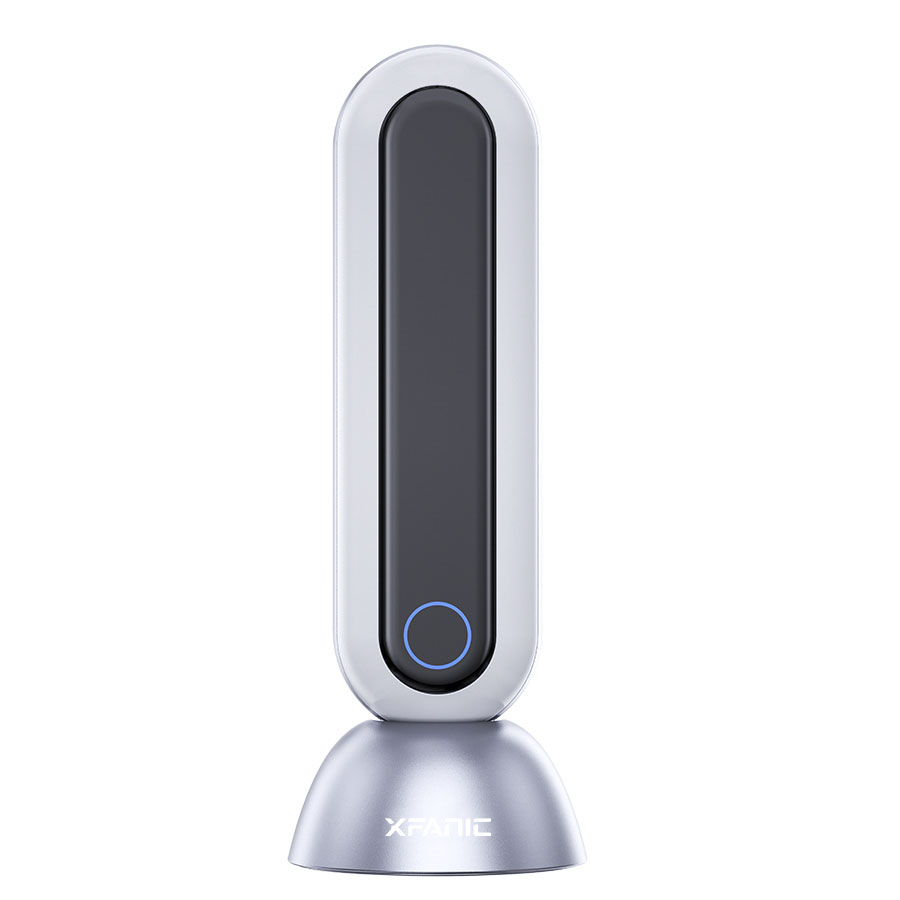

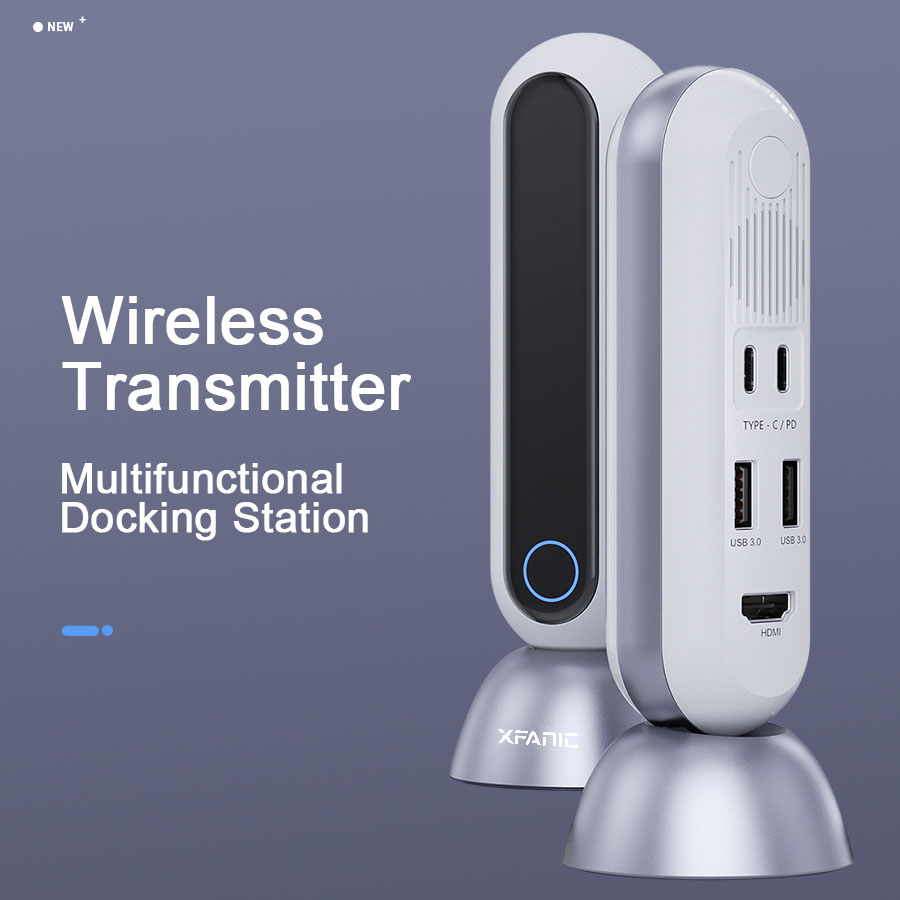

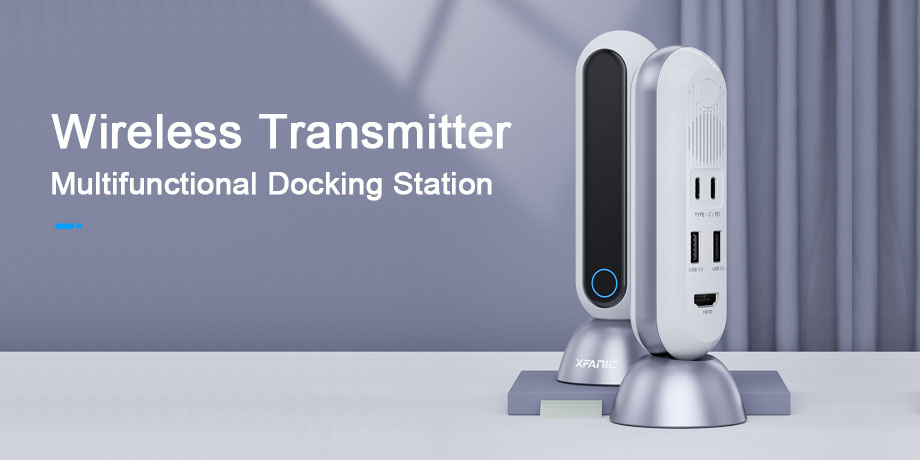

Millimeter Wave Dock

此款高端无线HDMI发射器拥有出色的25米传输距离和快速的图像传输能力，极大地提高了用户的使用体验。该产品配备USB-C和HDMI输入接口，能够连接大多数USB-C移动设备和笔记本电脑，方便实用。双USB-C接口具有盲插、数据传输(USB-C 3.1)和快速充电(PD3.0)等多种功能，同时还可以为设备和自身充电。此外，两个USB-A接口支持数据读取、鼠标和键盘连接，也可以作为扩展坞满足各种工作需求。此款无线HDMI发射器配备高端毫米波无线HDMI接收器，与发射器一起使用，可实现无缝连接和配对。产品还拥有USB-C充电端口和HDMI端口支持视频输出功能，用户无需再为繁琐的电线连接而烦恼，享受更加舒适方便的使用体验。

Specification

General
HDMI Standard	HDMI 1.4
HDCP Version	Tx：HDCP 2.2, 1.4 compliant		Rx: HDCP 2.2
Bandwidth	3.96Gbps

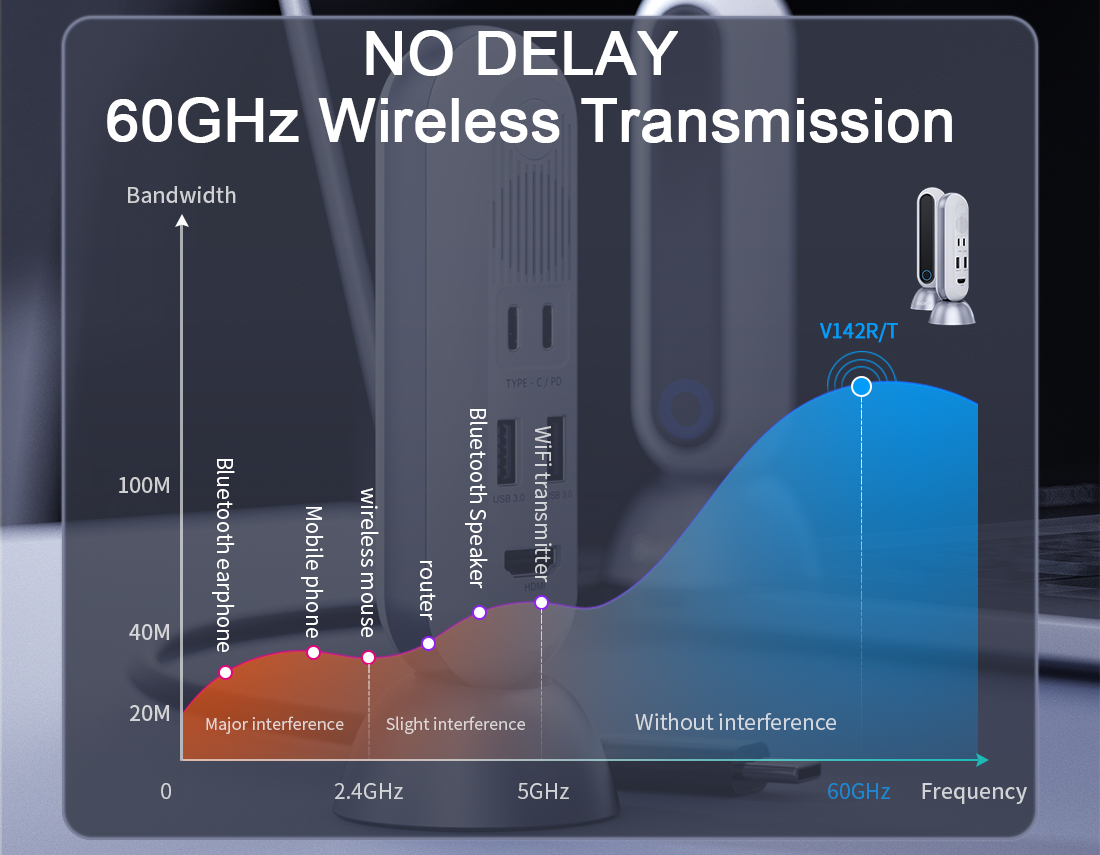

RF	60GHz
Transmission Distance	25m
Transmission Latency	3ms
Operation Temperature	-10~ +45℃
Storage Temperature	-20 ~ +70℃
Relative Humidity	10%-85%
Power Supply	DC5V/2A
Power Consumption	Tx: 9W	RX: 4W
Dimension *(WHD)*	TX: L57xW57xH156 (mm)	RX: L57xW57xH156 (mm)
Net Weight	TX:465.4g,	RX:420.8g

Technical Specification

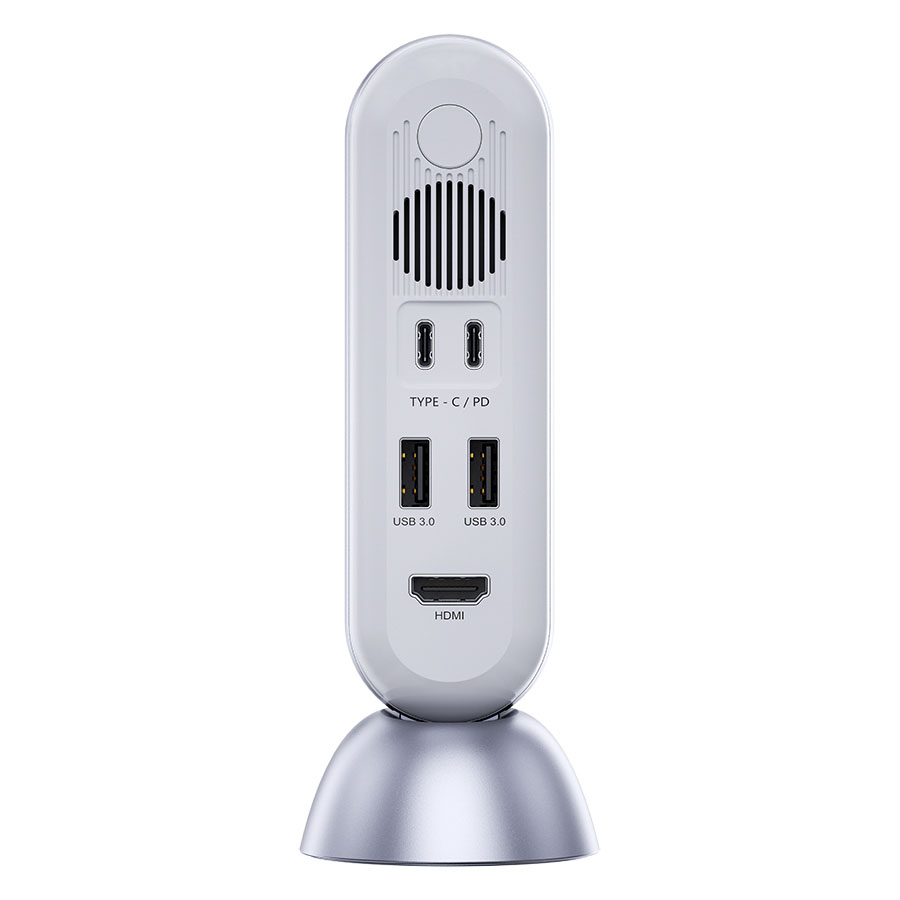

	Transmitter	Receiver

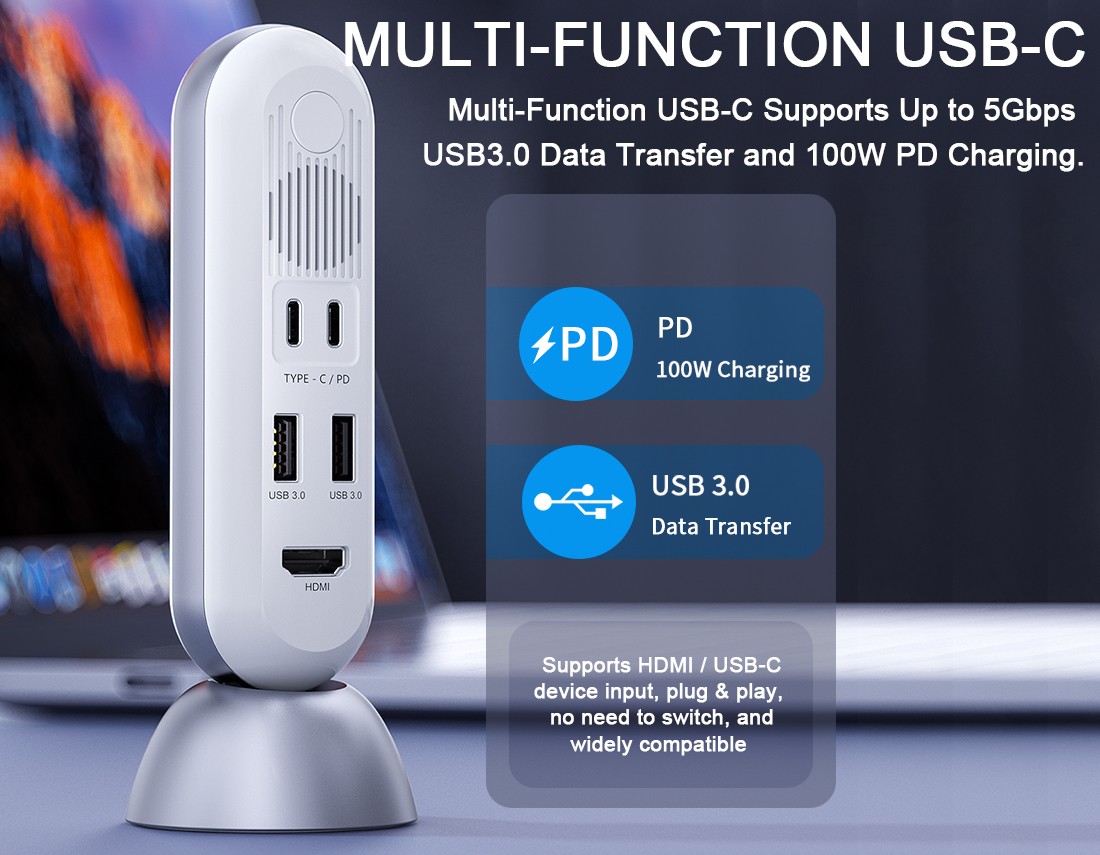

USB-C	USB-Cx2, USB3.1 Gen1, 5Gbps. PD3.0 up to 20V/5A	Power supply 5V, > 1A
USB-A	USB 3.0, 5Gb/s For keyboard, mouse, U disk and hard disk connection	-
HDMI	Input HDMI1.4 , Up to 4K@30Hz	Output HDMI1.4 , Up to 4K@30Hz
Button	Factory Reset (10S)	Factory Reset (10S)
Indicator	Blue light, Connection status indicator: 1. Light OFF: Power saving mode，no power supply 2. Light ON: Working mode 3.Quickly flashes：Successfully paired and connected. 4. Slowly Flashes：Not paired/Connection lost	Blue light, indicating connection status

1*TX (transmitter)

1*RX (receiver)

1*USB-C 3.1 C To C Cable 0.5m

2*HDMI 1.4 4K@30Hz cable 1m

2*UAB-A 2.0 A To C Cable 1m

1*User manual
